| Item | Unit | Value |
|---|---|---|
| Max. load capacity | t | 90 |
| Telescopic boom | m | 48 |
| Number of axles | – | 2 |
| Max. hoist height | m | 63.1 |
| Max.load moment | kN.m | 2840 |
| Drive engine model | – | QSB6.7-C260-30 SC9DK260.1G3 |
| Drive engine power | kw | 194 192 |
| Drive/Steering | – | 4×4×4 |
| Driving speed | km/h | 34.8 |
| Dead Weight in Travel State | kg | 53498 54998 |
| Dimensions | mm | 14468×3280×3898 |
| Emission standard | – | Stage IIIA EURO-V |

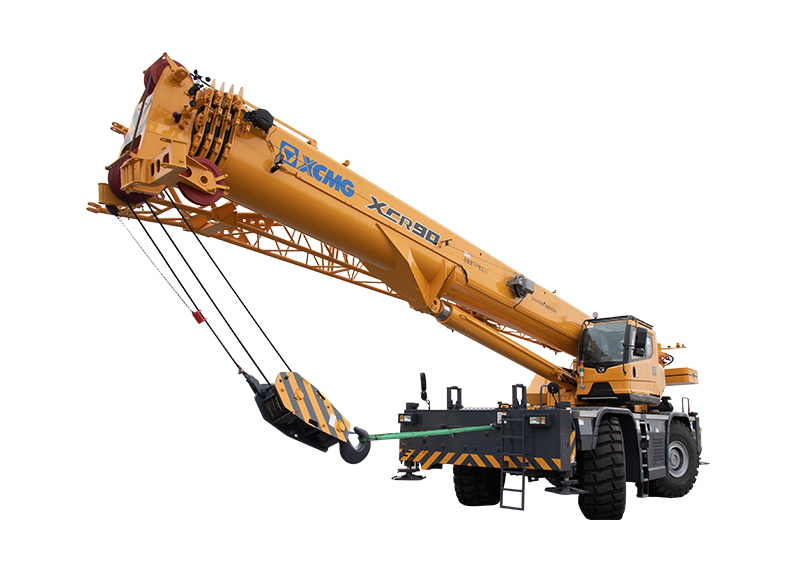

XCR90
- Operating weight 53498 54998 kg
- Rated power 194 192 kW
- Engine model QSB6.7-C260-30 SC9DK260.1G3
XCR90
PARAMETERS
