| Item | Unit | Value |
|---|---|---|
| Operating weight | Kg | 21900 |
| Rated power | kW/rpm | 135 |
| Engine model | – | Cummins QSB7 |
| Bucket capacity | m³ | 1.05 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 740/900-1600 |
| Displacement | L | 6.7 |
| Travel speed | km/h | 5.4/3.1 |
| Swing speed | r/min | 11.8 |
| Bucket digging force | kN | 149 |
| Arm digging force | kN | 111 |

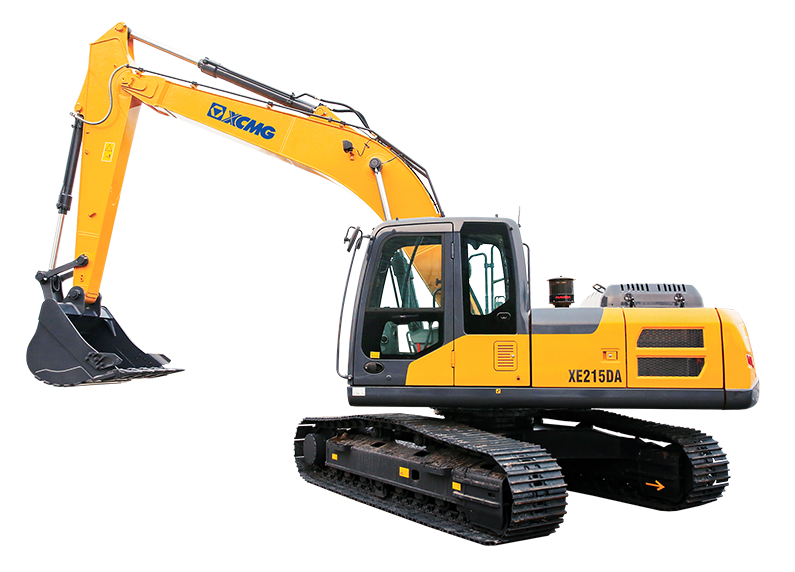

XE215DA — 21900 kg · 135 kW · Cummins QSB7
