| Item | Unit | Value |
|---|---|---|
| Operating weight | Kg | 39750 |
| Rated power | kW/rpm | 212 |
| Engine model | – | ISUZU GH-6HK1XKSC-03 |
| Bucket capacity | m³ | 0.4 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 1080/1500 |
| Displacement | L | 7.79 |
| Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9.7 |
| Bucket digging force | kN | 91 |
| Arm digging force | kN | 71 |

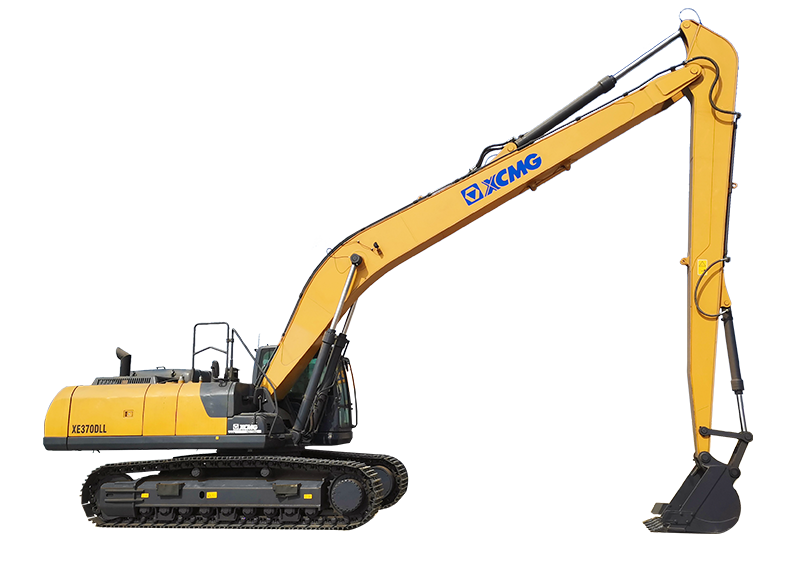

XE370DLL
- Operating weight 39750 kg
- Rated power 212 kW
- Engine model ISUZU GH-6HK1XKSC-03
XE370DLL — 39750 kg · 212 kW · ISUZU GH-6HK1XKSC-03
