| Item | Unit | Value |
|---|---|---|
| Operating weight | Kg | 49800 |
| Rated power | kW/rpm | 321 |
| Engine model | – | Cummins X12 |
| Bucket capacity | m³ | 2.41 |
| Emission standard | – | Tier 4 Final |
| Maximum torque/speed | N.m | 2034/1400 |
| Displacement | L | 11.8 |
| Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9.2 |
| Bucket digging force | kN | 276 |
| Arm digging force | kN | 215 |

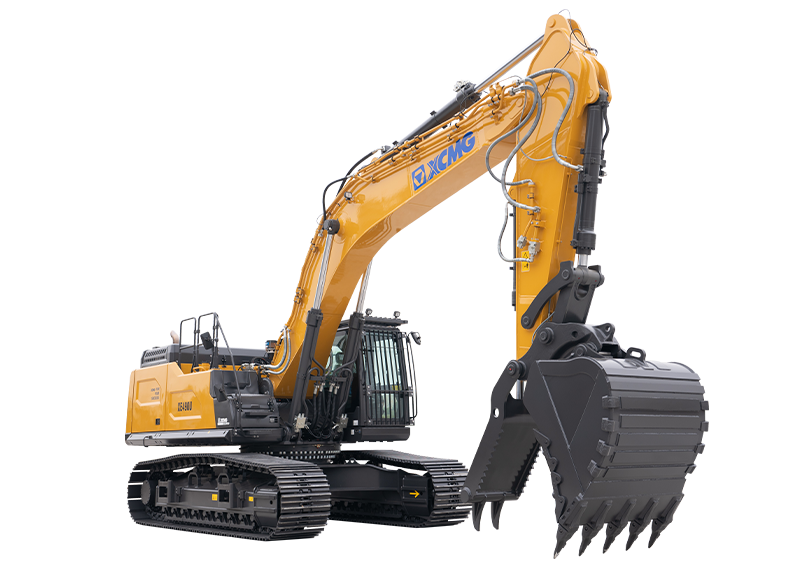

XE490U — 49800 kg · 321 kW · Cummins X12
