| Item | Unit | Value |
|---|---|---|
| Operating weight | Kg | 65800/69800 |
| Rated power | kW/rpm | 566 |
| Engine model | – | Weichai WP17 |
| Bucket capacity | m³ | 4/5 |
| Emission standard | – | National Stage Ⅲ |
| Maximum torque/speed | N.m | 3000/(1200-1500) |
| Displacement | L | 16.72 |
| Travel speed | km/h | 4.7/2.8 |
| Swing speed | r/min | 7.1 |
| Bucket digging force | kN | 382 |
| Arm digging force | kN | 318 |

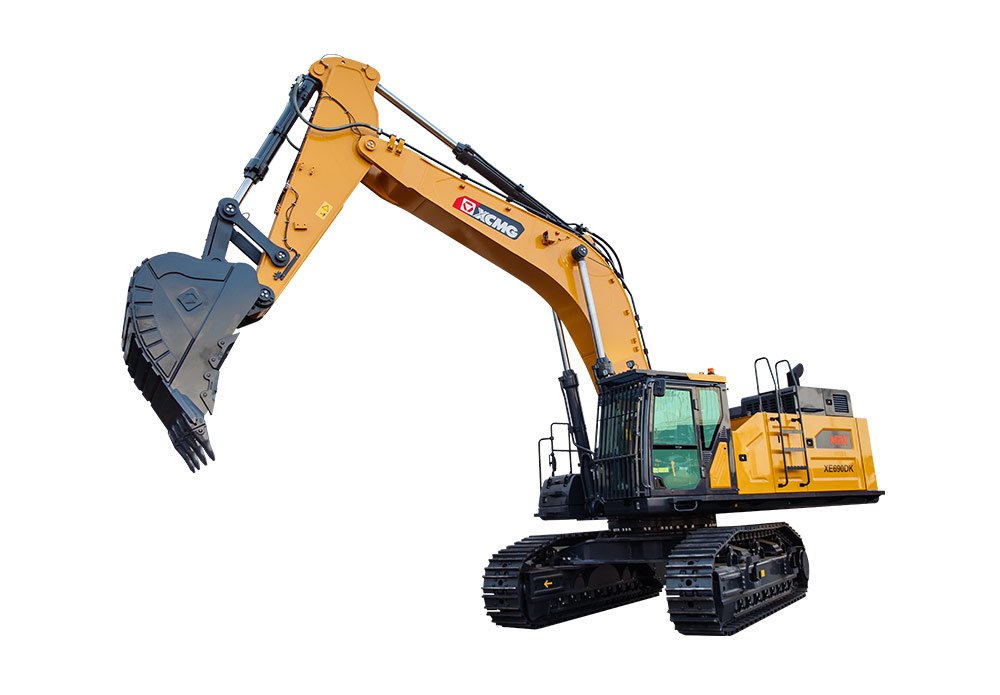

XE690DK — 65800/69800 kg · 566 kW · Weichai WP17
PARAMETERS
