| Item | Unit | Value |
|---|---|---|
| Operating weight | Kg | 9500 |
| Rated power | kW/rpm | 54.6 |
| Engine model | – | Kubota V3307CRTE5 |
| Bucket capacity | m³ | 0.33 |
| Emission standard | – | Tier 4 Final |
| Maximum torque/speed | N.m | 265/1500 |
| Displacement | L | 3.3 |
| Travel speed | km/h | 4.9/2.7 |
| Swing speed | r/min | 12 |
| Bucket digging force | kN | 64 |
| Arm digging force | kN | 41 |

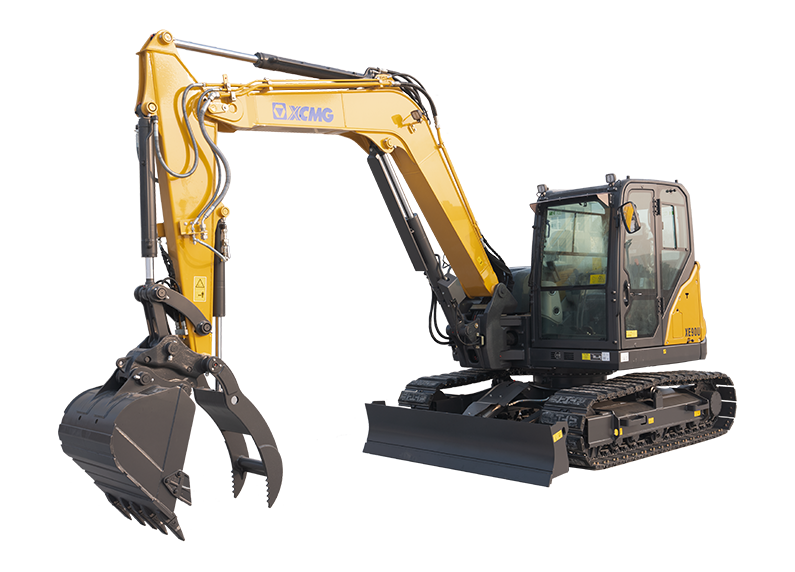

XE90U — 9500 kg · 54.6 kW · Kubota V3307CRTE5
