| Item | Unit | Value |
|---|---|---|
| Drilling diameter | mm | Ф138-Ф178 |
| Max. hole depth | m | 36 |
| Rated power | kW | 354 |
| Engine | – | Cummins QSZ13-C475 |
| Emission standard | – | CN III |
| Air volume | m³/h | 24 |
| Air compressor | – | Atlas Copco |
| Rotary torque | N·m | 5800 |
| Rotary speed | rpm | 90 |
| Weight | kg | 24500 |
| Transport dimensions | mm | 11800×2700×3560 |

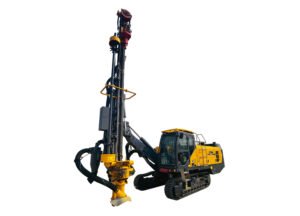

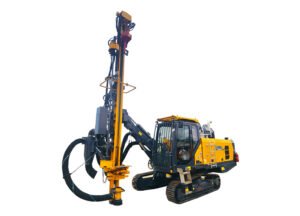

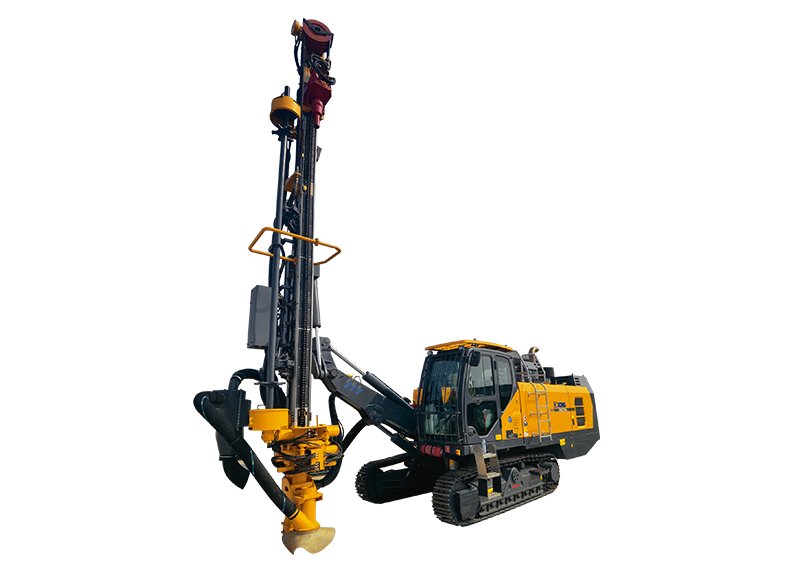

XQZ178
- Operating weight 24500 kg
- Rated power 354 kW
- Engine model Cummins QSZ13-C475
