| Item | Unit | Value |
|---|---|---|
| Curb weight standard configuration | kg | 44300 |
| Disposal capacity | t/h | 150-600 |
| Max. Grade ability | ° | 8 |
| Max. Speed | km/h | 0.6/1.2 (two gears) |
| Working state dimension / LxWxH | mm | 19800 x 16400 x 4650 |
| Transportation state dimension / LxWxH | mm | 19700 x 3490 x 3720 |
| Diesel tank capacity | L | / |
| Hydraulic oil volume | L | / |
| Screening machine layers | – | 3 |

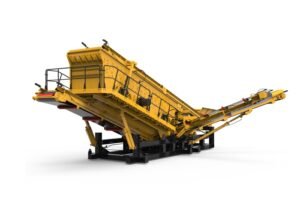

XFT1860
- Curb weight standard configuration 44300 kg
- Disposal capacity 150-600 t/h
- Max. Grade ability 8 °
