| Item | Unit | Value |
|---|---|---|
| Max. feedstock size | mm | 220 |
| Range of discharge opening | mm | 8~45 |
| Productivity | t/h | 95~380 |
| Driving type | – | Motor + narrow V belt |
| Motor power | kW | 220 |
| Horizontal shaft speed | rpm | / |
| Working environment temperature | ℃ | -20~+40 |
| Overall weight | kg | 17500 |
| Overall dimensions | mm | 3240×2430×2400 |

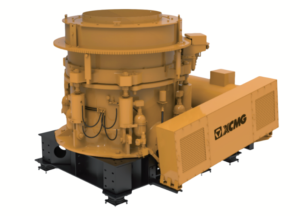

XGY1000
- Max. feedstock size 220 mm
- Range of discharge opening 8~45 mm
- Productivity 95~380 t/h
